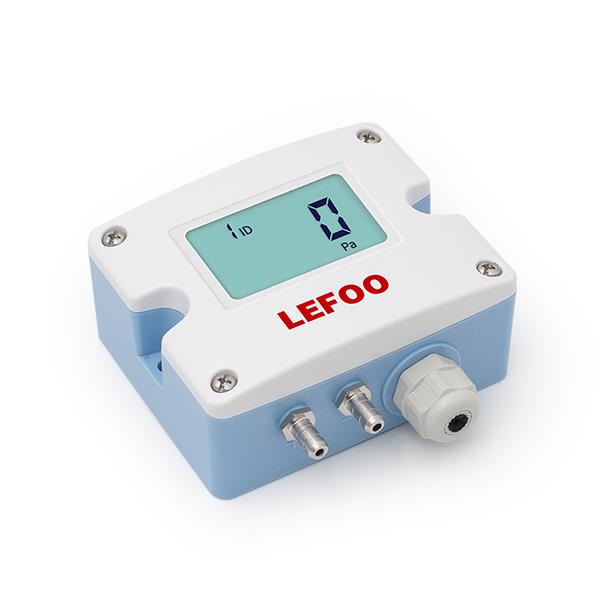

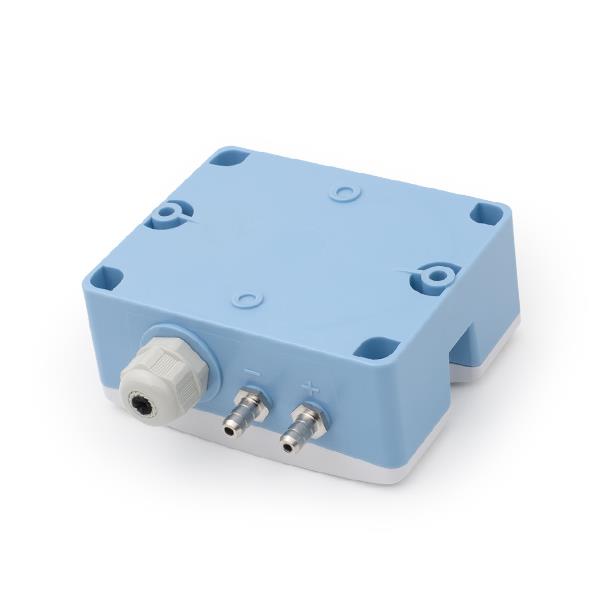

概 述

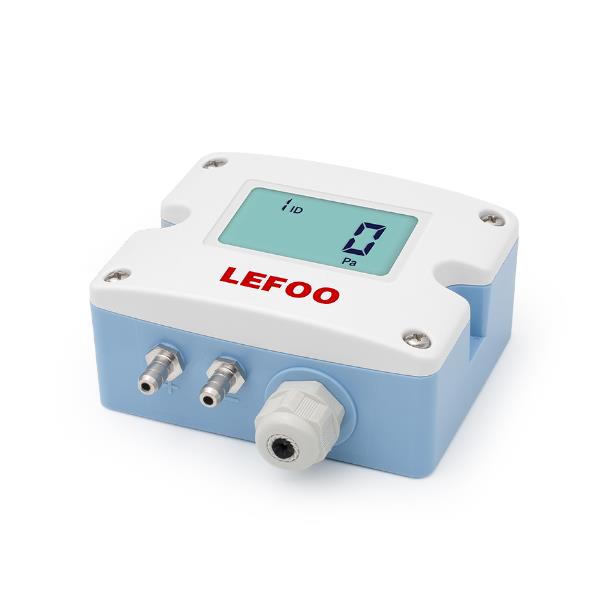

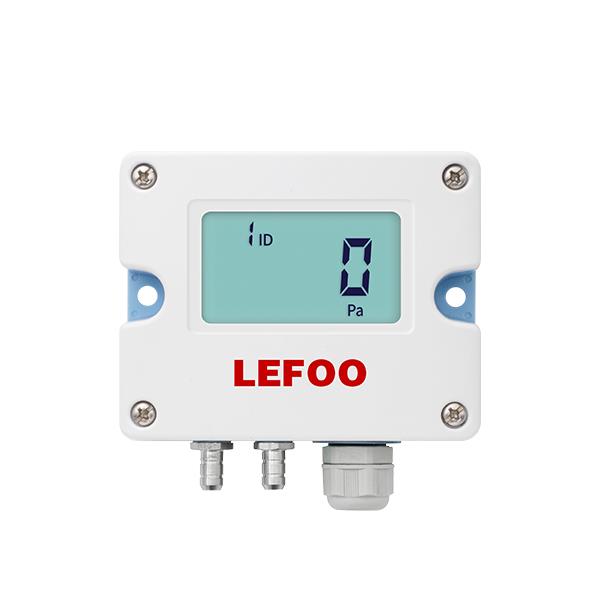

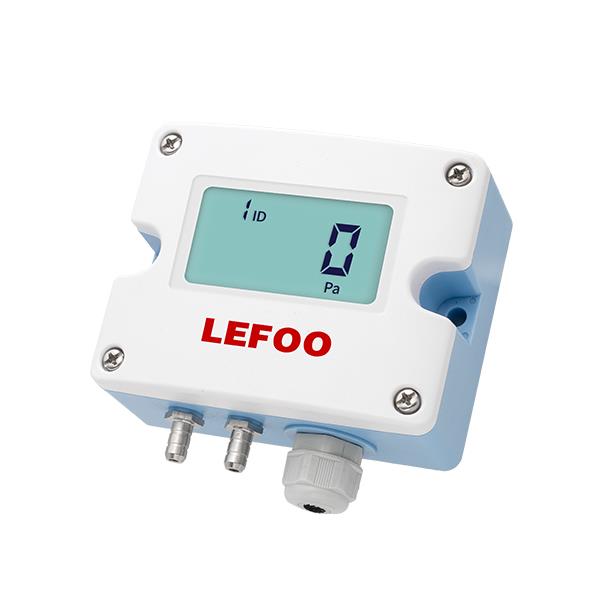

LFM52系列微差壓變送器是我司新推出的一款差壓變送器，既有多量程傳感器的靈活性，又有單量程傳感器的高性能，是工業應用的理想產品。該差壓變送器內置多種可選的壓力范圍和單位選擇，通過內置的撥碼開關可以方便的進行現場調整，采用IP65防護等級的外殼，并配備便于布線的不銹鋼導管接頭，適用于暖通空調（HVAC）、能源管理系統、VAV及風扇控制、環境污染控制、靜態管路和潔凈室壓力、煙霧罩控制、烘箱增壓及爐通風控制等領域。
技術參數
|
測量介質
|
空氣或者中性氣體
|
|
壓力量程
|
±100Pa, ±1000Pa,±10000Pa
|
|
允許過壓
|
5KPa(LFM526);10KPa(LFM520);80KPa(LFM522);
|
|
精度
|
±1%F.S
|
|
工作溫度
|
-20℃~70℃
|
|
補償溫度
|
-10℃~60℃
|
|
存儲溫度
|
-40℃~70℃
|
|
響應時間
|
0.5s(默認)/1.0s/2s/4s
|
|
防護等級
|
IP65
|
|

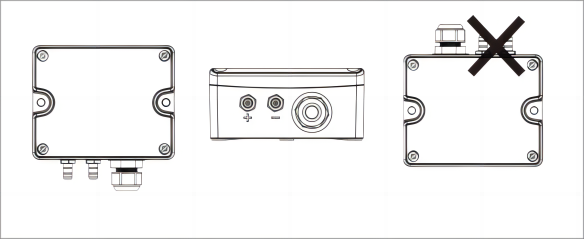

壓力接口
|
金屬倒刺接口，φ6.2mm
|
|

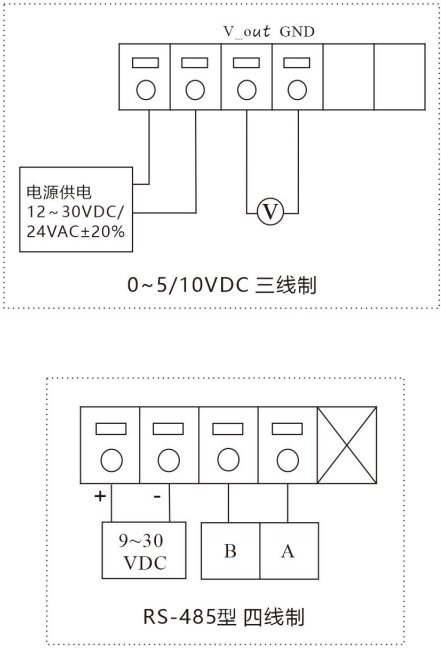

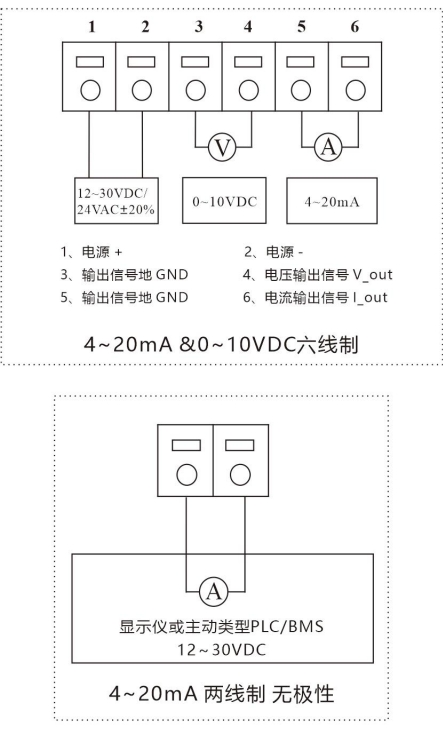

電氣連接
|
二線制
|
三線制
|
四線制
|
六線制
|
|
輸出信號
|
4～20mA(無背光)
|
0～5VDC/0～10VDC
|
RS-485
|
4～20mA&0～10VDC
|
|
供電電源
|
12～30 VDC
|
12～30VDC/24VAC±20%
|
9～30 VDC
|
12～30VDC/24VAC±20%
|
|
功耗
|
≤1.5W
|
|
外殼材質
|
UL94-V0/PC
|
|
通訊
|
RS-485標準接口，Modbus RTU協議
|
|
認證項目
|
ROHS認證，歐盟CE認證
|
|
電磁兼容性
|
EN 61326-1
|
|
顯示方式
|
LCD背光數字顯示
|
選型說明
|
代號及說明
|
備注
|
|
LFM52
|
微差壓變送器
|
型號
|
|
|
6
|
-100～100pa
|
量程范圍
|
|
0
|
-1000～1000Pa
|
|
2
|
-10000～10000Pa
|
|
|
|
N
|
無顯示屏
|
是否帶顯示
|
|
O
|
有顯示屏
|
|
|
A
|
4～20mA和0～10V(同時輸出
|
輸出類型
|
|
B
|
4～20mA(兩線制)(無背光)
|
|
C
|
0～10V(三線制)
|
|
D
|
0~5V(三線制)
|
|
E
|
RS-485通訊
|
|
E1
|
RS-485通訊(帶隔離)
|
|
|
|
C
|
±1.0%FS
|
精度等級
|
|
|
|
LFM52 6 O B C
|
選型舉例
|
